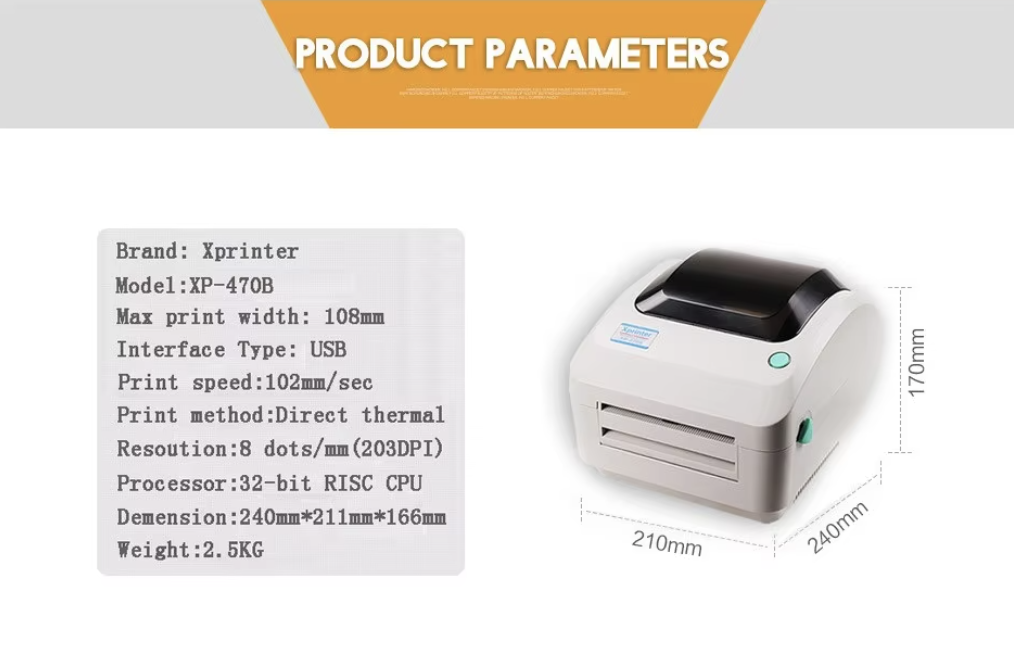

Product Specification
Printer Model XP - 470B 470E
Printing Features
Resolution 203 DPI
Print method Direct Thermal
Max.print speed 152 mm(6")/s Max.

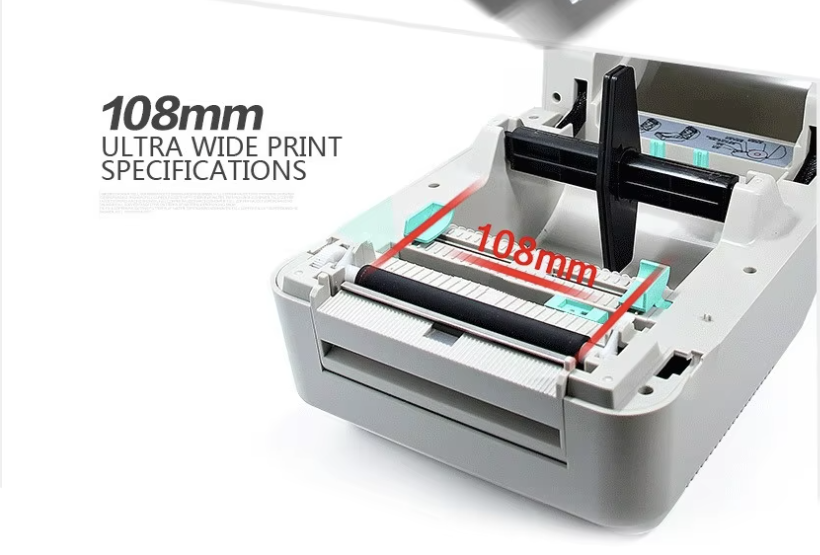

Max.print width 108 mm (4.25")
Max.print length 1778 mm (70")
Media
Media type Continuous, gap, black mark, fan-fold and punched hole

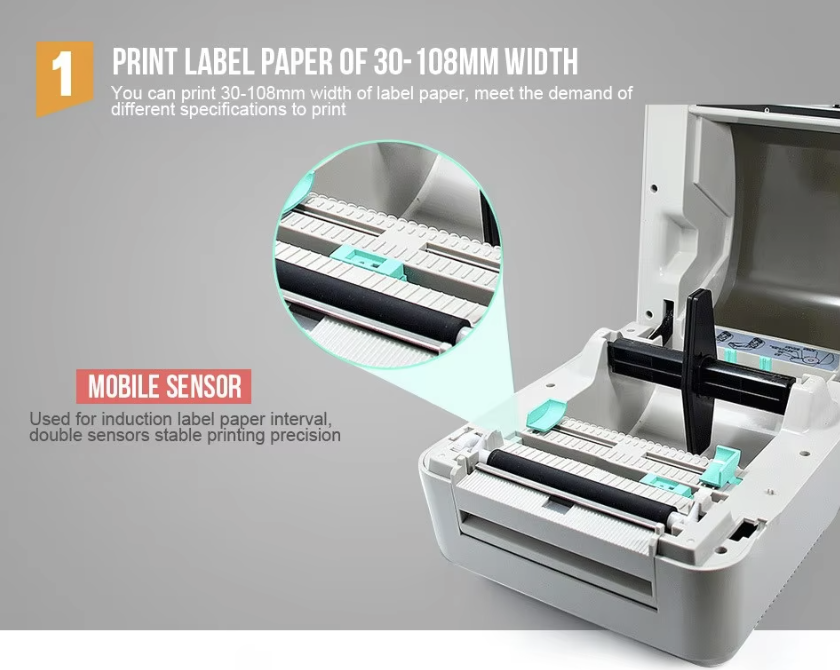

Media width 25.4-118mm ( 1.0"-4.6" )
Media thickness 0.06 ~ 0.25 mm (2.36 ~ 9.8 mil)
Media core diameter 25.4 ~ 76.2 mm (1"~ 3")
Label length 10 ~ 1778 mm (0.39" ~ 70")
Label roll capacity
127 mm (5") (External diameter)
Performance Features
Processor 32-bit CPU
Memory 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb

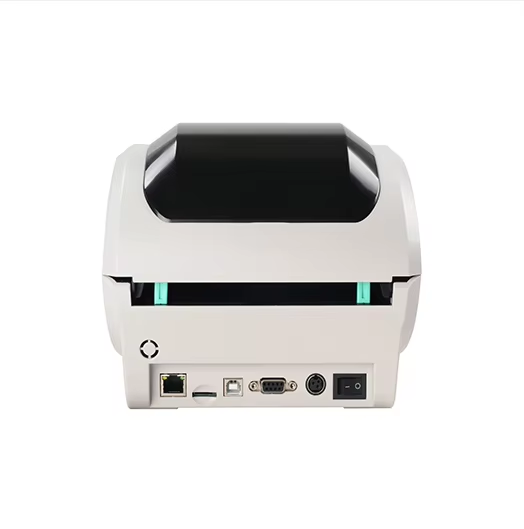

Interface

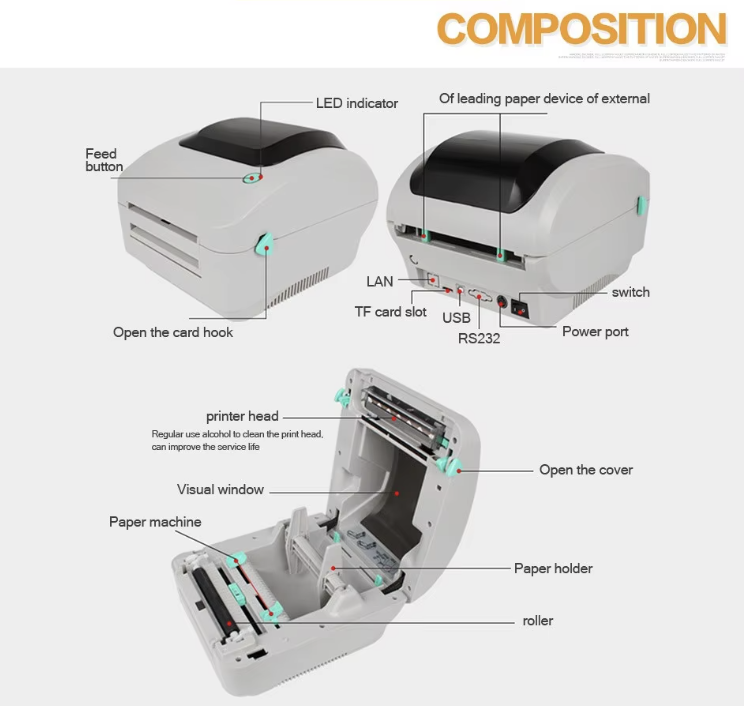

Standard:USB TF card Optional:Serial/Lan/WIFI/Bluetooth
Fonts/Graphics/Symbologies
Internal fonts 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D barcode
Code 39, Code 93, Code 128UCC, Code 128 ,subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,
MSI, PLESSEY, POSTNET, China POST
2D barcode PDF-417, Maxicode, DataMatrix, QR code
Rotation 0 ,90 ,180 ,270 degree
Emulaion TSPL,EPL,ZPL,DPL
